1972-1977 Jeep Wagoneer Upper Fuel Filler hose

1972-1977 Jeep Wagoneer "Upper" fill hose w/out flange and the vent hole is on the top of the hose and includes the filler hose nipple(TREXCJFHN).

**There are 4 known "Upper" fill hoses for the 1963-1979 Jeep Wagoneer's! It is crucial to visually compare your hose to this hose listing and to know if your Wagoneer has the Evap canister. The primary differences are if the fill hose has a flange that is used to connect the hose to the side of the Jeep or not and where the vent hose connection hole is located. The vent hose is connected to the fill hose with a metal nipple(TREXCJFHN-1) by using this hole.

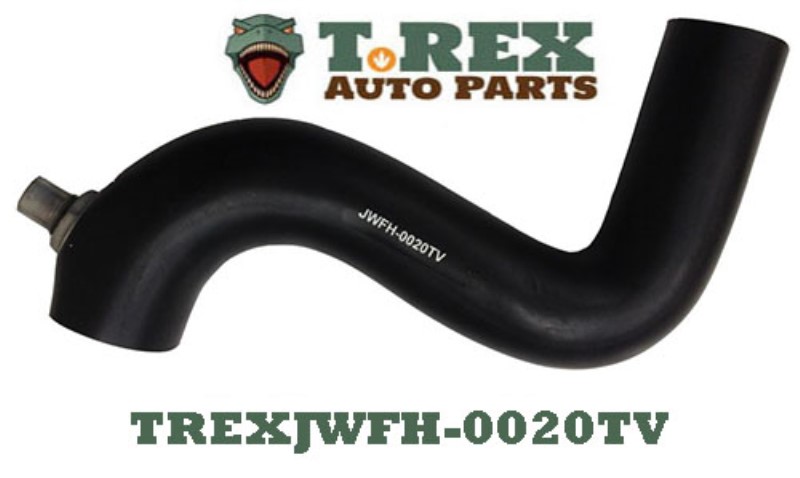

- This "Upper" fill hose (w/out flange) - TREXJWFH-0020TV has the vent hole on top of the Wagoneer when installed.

- The 2nd "Upper" fill hose (w/ flange) - TREXJWFH-1 has the vent hole facing the rear of the Wagoneer when installed and is for the Wagoneer's without the Evap canister.

- The 3rd "Upper" fill hose (w/ flange) - TREXJWFH-2 has the vent hole is facing the front of the Wagoneer when installed and is for the Wagoneer's with the Evap canister.

- The 4th "Upper" fill hose (w/out flange) - TREXJWFH-0020SV has the vent hole facing the front of the Wagoneer when installed.
